Stainless Steel (SS-316) Centrifugal Pumps

Applications

CFP series pumps can be used for loading, unloading, transfer and processing of various liquids
such as
• Acids, Fine chemicals, Dyes & Intermediates
• Electroplating Chemicals, Effluent liquids, Acid washing etc
• Fruit juice, Beer, Wine and other Beverages
• Pharmaceutical formulations, Syrups, Food processing liquids etc
• RO Water, DM Water & Acid descaling
• Milk, Butter milk, Vegetable Oil, Mineral Oil etc
• Petrol, Kerosene, Diesel and other petroleum liquids
• Color dyes, Pigments, Textile sizing, Dyeing & finishing systems
• Liquid detergents, Alkaline solutions, Thermic fluid and hot water also

Configuration

• Monoblock, Bare Pump and Coupled set with motor and base frame.
• Monoblock pump in Single & Three phase Single phase upto 1 HP only.
• Pumps with Flameproof Motors also available.
• Al Standard pumps with Closed impeller. Semi Open impeller available optionally.
• Al Standard pumps with Carbon v/s Ceramic Mechanical Seal.
• Silicon v/s Silicon, TC v/s TC Mechanical Seal available optionaly and recommended for High Temp. and
Liquid with abrassive particles.
• Pure Teflon Gland packing also availbale.
• Single Seal, Double Seal and External Seal cooling facility can be provided.
• End connectins in BSP Threads, Flanges as per ASA 150, Triclove joints, Nozzle connections.

Operating

• Al CFP series pumps are centrifugal type and hence require priming before start up.
• Max. Suction Lift with foot valve – 7 meters

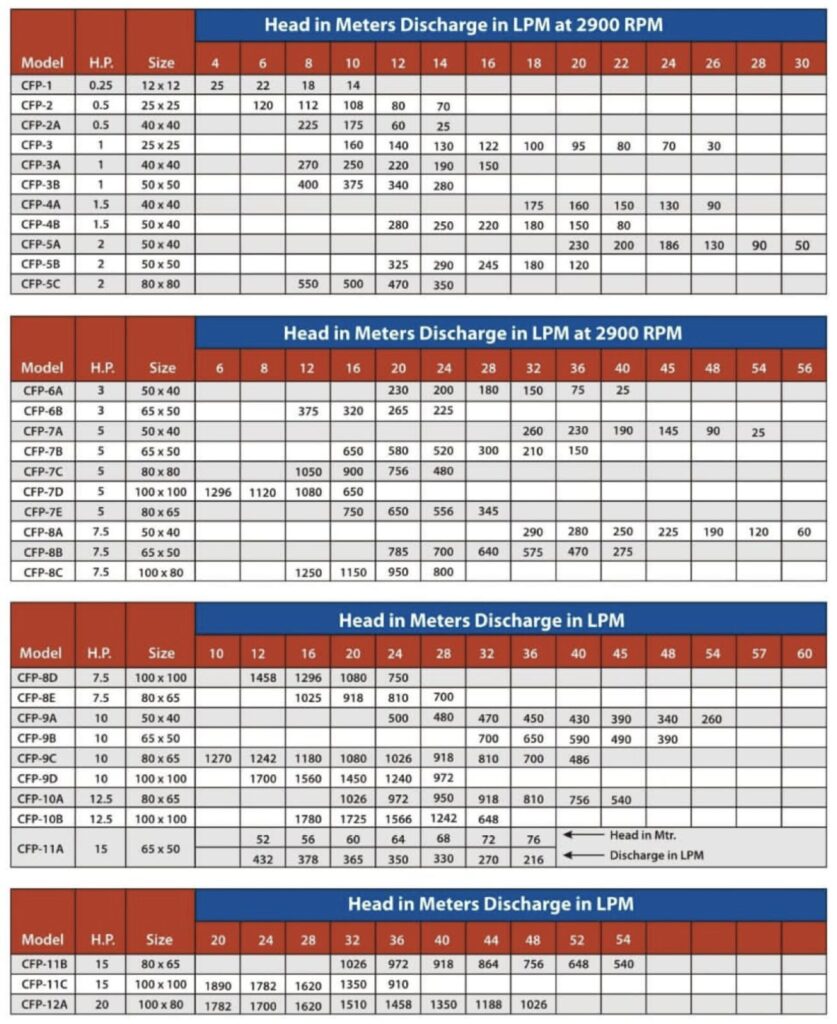

• Max. Capacity upto 2000 LPM
• Max. Head upto 76 meters
• Max. Operating Temp. 90 deg for Std. Pumps / 250 deg for High Temp type
• Monoblock pumps are recommended for temp. upto 90° only. For Higher Temp. bare pumps coupled
with motor are advised
• Max. Viscosity handling upto 1500 centipoise
