SHAKTI SCRM 2, 4 & 9 PUMP

FEATURES

• Strengthened cartridge seals.
•  All single phase motors are fitted with thermal motor protector.
•  Good compatibility and environment friendly.
•  Enhanced hydraulic efficiency and low power consumption.
•  Low noise and vibration level.
• LigLight-Weight & Easy handling
•  CED Coating parts for corrosion resistance that comes with an uniform coating, which provides 5 times more protection over conventional painting, resulting in longer life.
•  Suitable for slightly aggressive liquids

APPLICATIONS

• Washing System
• Cooling and air conditioning system
• Water treatment system
• Fire Fighting System
• Industrial Plants
• Boiler feeeding system
• Irrigation system.
• Water Supply

PERFORMANCE

• Head Range, H : Max. 220 Meters
• Flow Range, Q : Max. 8.5 m³/hr (142 LPM)
• Power Range : 1.5 Kw – 3.7 kW
• Supply Voltage : 3 PH x 380-415 V
• 1 PH x 220-230/240 V
• Efficiency Class : IE3
• Insulation : H Class
• Protection : IP55

Specifications

Pump Shaft : DUPLEX
Impeller : SS 304
Mechanical Seal : Cartridge Type
Suction/Discharge : CI FG 260
Chamber

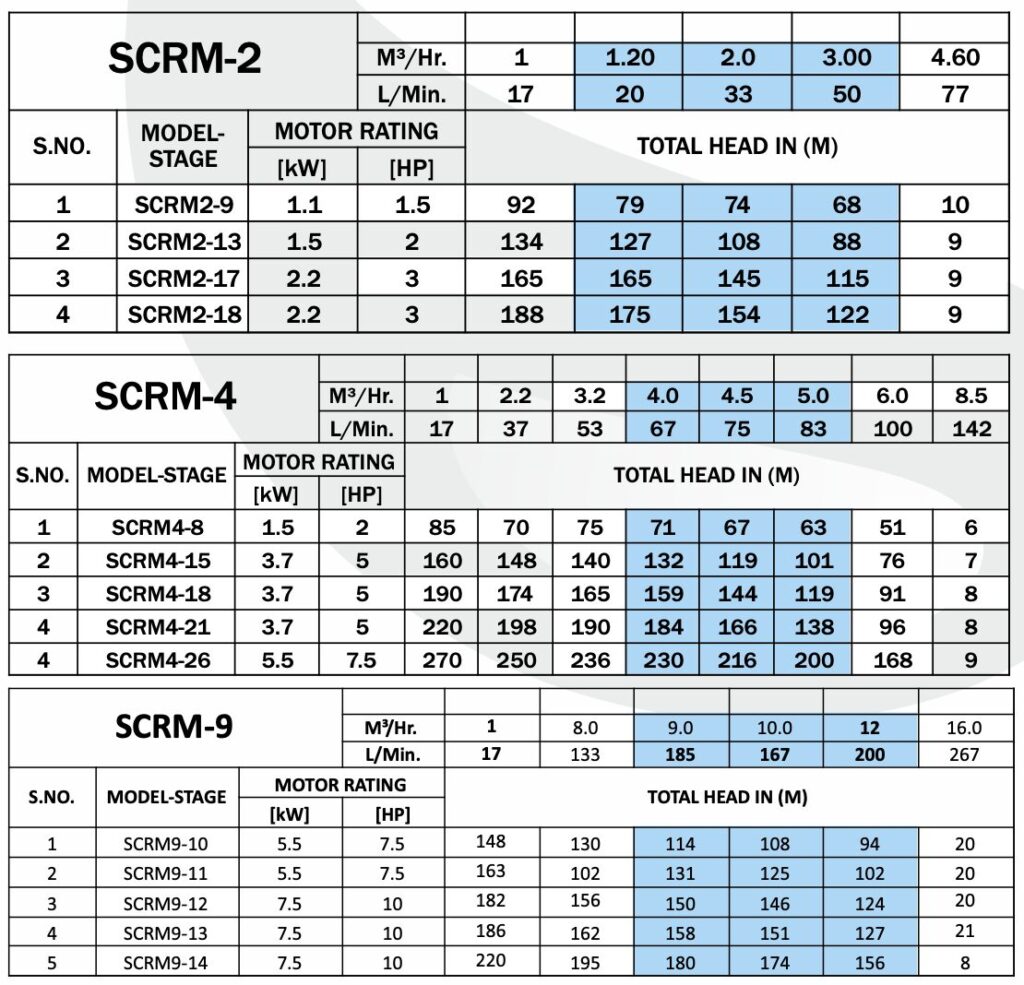

PERFORMANCE TABLE
