AGNES Kirloskar Horizontal Multistage Pump

Applications

• Industrial and Domestic Water Pressure Boosting
• Feed Water Application in RO Plants
• High Pressure Liquid
• Circulation and Pumping in Industries
• Air/conditioning and Cooling System
• Car Washing

TECHNICAL SPECIFICATION

• Head Range – Up to 55 Meters
• Discharge Range – Up to 12 m3/h
• Power Rating – 0.37 to 2.2 kW (0.5 to 3 HP)
• Voltage Range – 220 Volts±10% and 415 Volts±10%
• Insulation – F Class
• Protection – IP55
• Max Liquid Temp – 85° C

MATERIAL OF CONSTRUCTION

• Impeller – SS 304
• Diffuser – SS 304
• Delivery Casing – Cast Iron
• Shaft – SS-304
• Motor Body – Aluminium
• Mechanical Seal – Carbon vs Ceramic

FEATURES

• Industrial and domestic water pressure boosting
• Feed water application in RO plants
• High pressure liquid circulation and pumping in industries
• Air/conditioning and cooling system
• Car washing

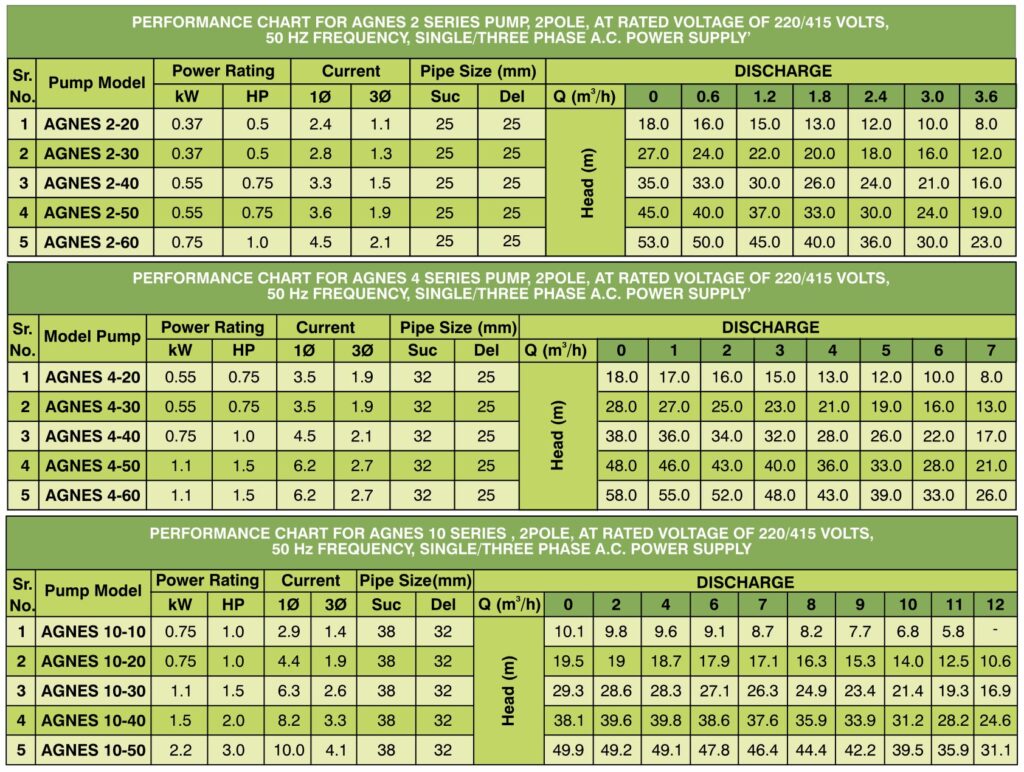

Screenshot
